Active

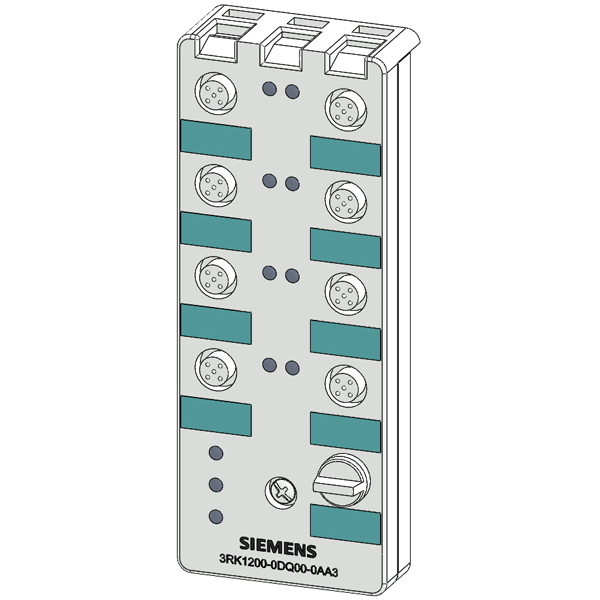

AS-i compact module K60 digital 8 DI

Name: AS-i compact module K60 digital 8 DI
Brand: Siemens
SKU: 3RK1200-0DQ00-0AA3
Availability: InStock

Part Number: 3RK1200-0DQ00-0AA3

Brand

Visit Website

Specifications

Dimensions

Width60 mm

Height152 mm

Depth29 mm

Other

input voltage20 ... 30 V

fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module

shock resistance15g / 11 ms

protection class IPIP67

design of the productdigital I/O modules for operation in the field, IP67 - K60

number of digital inputs8

design of the device typestandard slave

number of digital outputs0

type of connection technology2- and 3-wire technology

type of voltage of the input voltagesDC

type of voltage supply for sensor supplyusing AS-Interface

design of the pin assignment of the inputsY-II assignement

design of the pin assignment of the outputsY-II assignement

type of electrical connection of the inputs and outputsM12 screw-type terminals

property of the sensor supply short-circuit and overload resistantYes
