Active
AS-i compact module K60 analog 2 AQ
Part Number: 3RK1107-1BQ40-0AA3
Brand
Category
Fieldbus, decentr. periphery - analogue I/O module

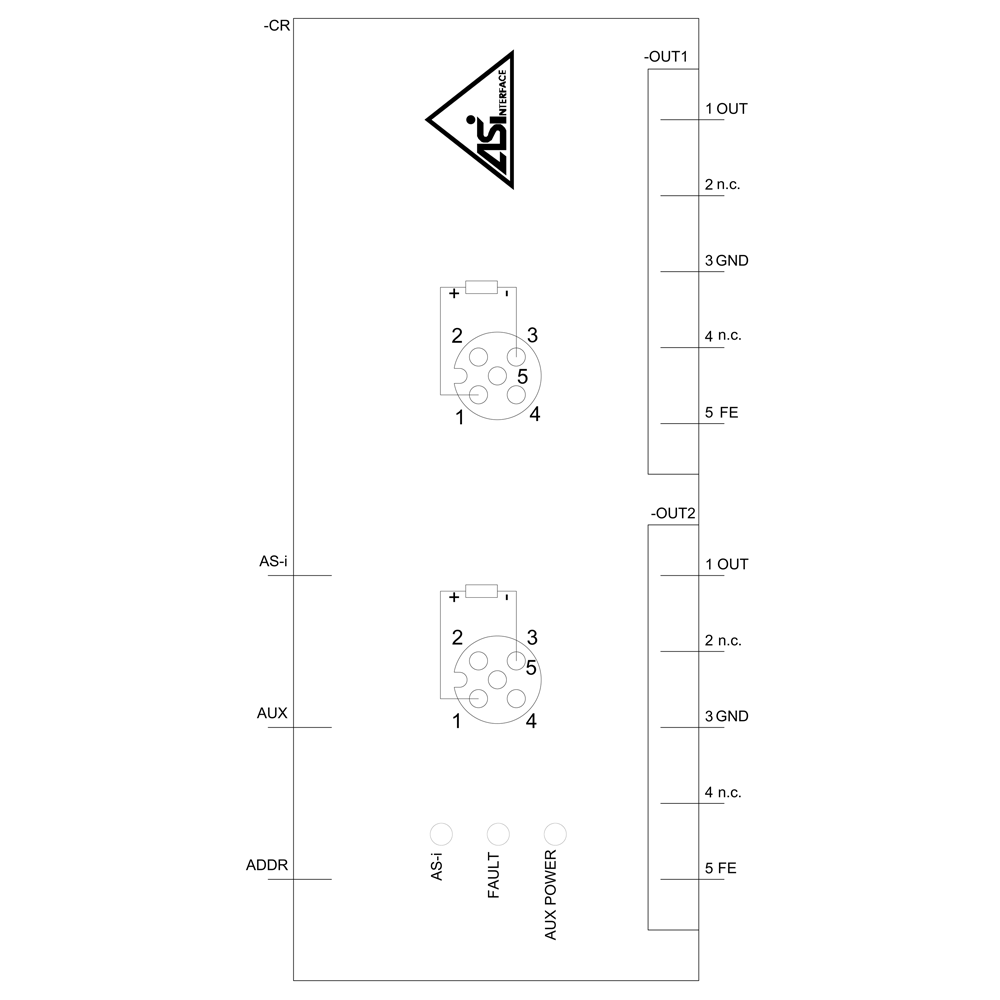

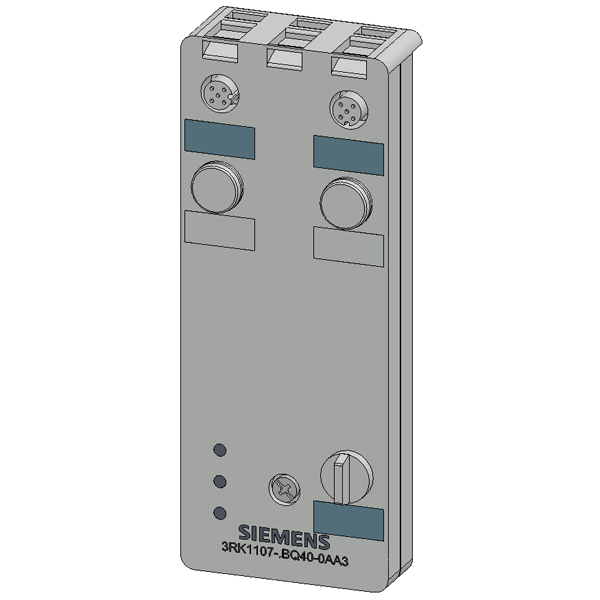

Siemens 3RK1107-1BQ40-0AA3. AS-i compact module K60 analog 2 AQ, IP67 2 x 1 output, current 0..20 mA, 4..20 mA, +/- 20 mA for 2-wire actuators 2 x M12 socket Mounting plate 3RK1901-0CA00 must be ordered separately.
Specifications
Dimensions
Width60 mm
Height152 mm
Depth29 mm
Other
profile7.3
output quantitymA
fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module
protection class IPIP67
design of the productanalog I/O modules for operation in the field, IP67 - K60
number of analog inputs0
number of analog outputs2
design of the device typeanalog slave
A/D resolution for analog inputs/outputs12
product function parameterizable output variableYes
type of electrical connection of the inputs and outputsM12 screw-type terminals
consumed current from profile conductors of the AS-Interface at 30 V maximum160
