ID1 codeF; Factory setting, changeable
fastening methodscrew and snap-on mounting
shock resistance15g / 11 ms (modules) or 10g / 11 ms (modules with device connector)
other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.

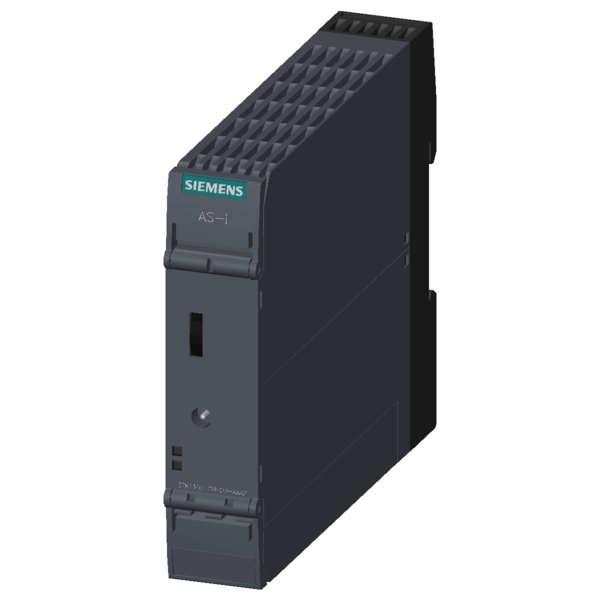

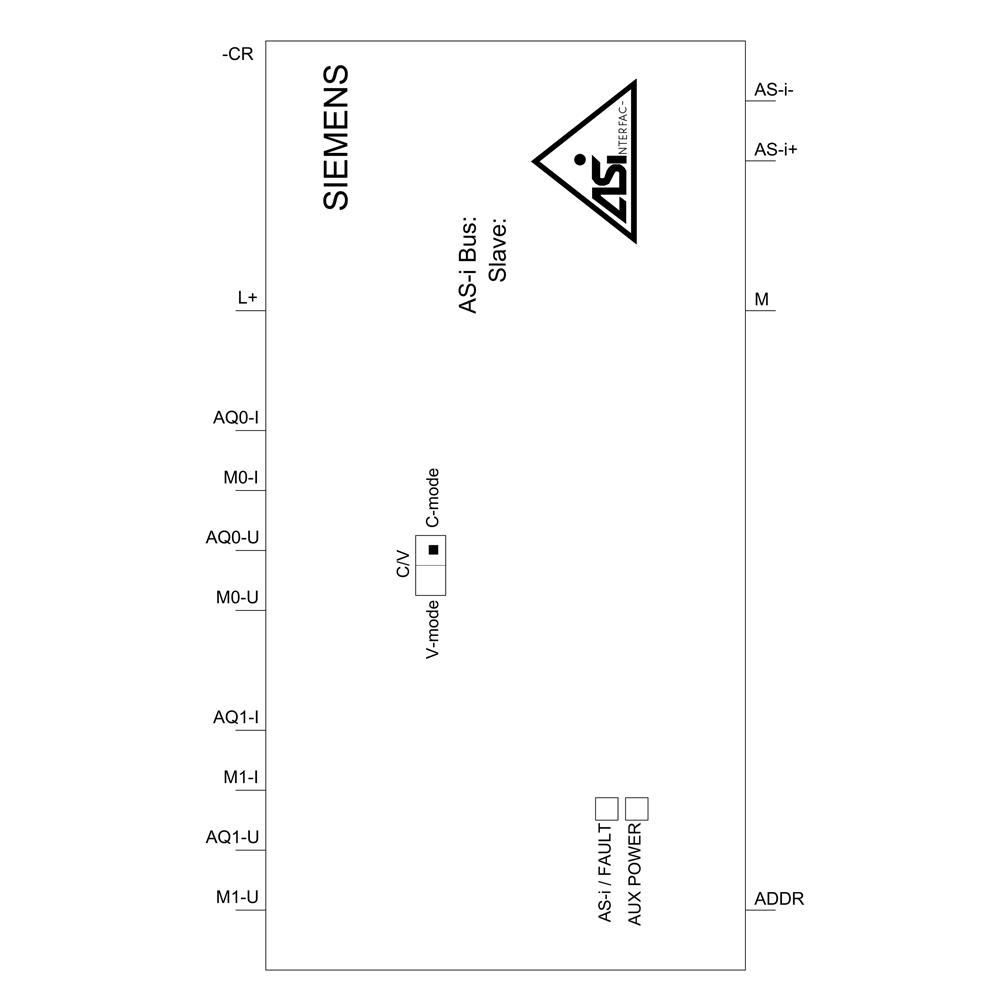

product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC22.5, 2AQ voltage/current
number of analog inputs0
number of analog outputs2
number of digital inputs0
product type designation3RK1
design of the device typestandard slave
number of digital outputs0
AS-Interface device profileS-7.3.5
Substance Prohibitance (Date)05/01/2012
signal range at analog output0 ... 20 mA; 4 ... 20 mA; +/- 20 mA; 1 ... 5 V; 0 ... 10 V; +/- 10 V
type of voltage supply at the outputsAS interface or U_AUX
A/D resolution for analog inputs/outputs12 bit
number of digital inputs safety-related0
product function suitable for AS-i Power24VYes
type of address setting of the AS-i devicesvia front addressing socket
product function parameterizable output variableYes
type of electrical connection of the inputs and outputsScrew terminals
operating voltage according to AS-Interface specification18 ... 31.6 V
symmetrical temperature error per K relating to input range/output range0.01 %/K
relative symmetrical linearity error relating to input range/output range0.08 %
relative symmetrical operational limit relating to input range/output range1 %; full sclae
relative symmetrical basic error limit relating to input range/output range at 25 °C0.8 %
relative symmetrical repeat accuracy relating to input range/output range in settled state 25 °C0.1 %
