Active

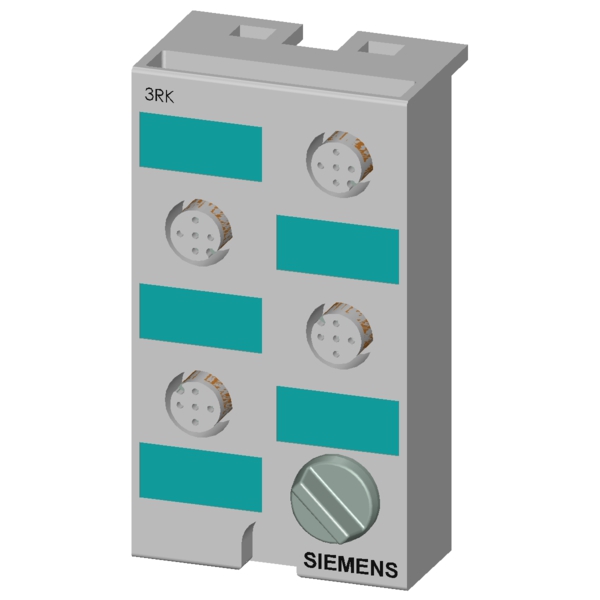

AS-i compact module K45 digital 4 DQ

Name: AS-i compact module K45 digital 4 DQ
Brand: Siemens
SKU: 3RK1100-1CQ20-0AA3
Availability: InStock

Part Number: 3RK1100-1CQ20-0AA3

Brand

Visit Website

Specifications

Dimensions

Width45 mm

Height80 mm

Depth30 mm

Other

fastening methodstandard rail mounting/wall mounting using mounting plate for K45 compact module

shock resistance15g / 11 ms

protection class IPIP67

design of the productdigital I/O modules for operation in the field, IP67 - K45

number of digital inputs0

type of switching outputPNP transistor

design of the device typestandard slave

number of digital outputs4

type of connection technology2- and 3-wire technology

type of voltage of output voltagesDC

property of the output short-circuit proofYes

design of the pin assignment of the outputsstandard assignement

ampacity of the semiconductor output at DC-13 at 24 V1 A

type of electrical connection of the inputs and outputsM12 screw-type terminals
