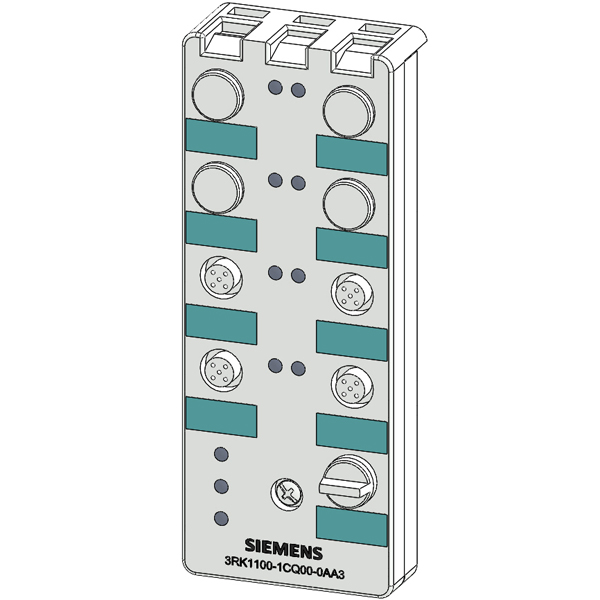

AS-i compact module K60 digital 4 DQ
Part Number: 3RK1100-1CQ00-0AA3
Brand
Category
Fieldbus, decentr. periphery - digital I/O module
Siemens 3RK1100-1CQ00-0AA3. AS-i compact module K60 digital 4 DQ, IP67 4 x output, 2 A 24 V DC maximal 4 A for all outputs 4 x M12 socket Y-II assignment Mounting plate 3RK1901-0CA00 must be ordered separately.
Specifications
Dimensions
Width60 mm
Height152 mm
Depth29 mm
Other
fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module
shock resistance15g / 11 ms
protection class IPIP67
design of the productdigital I/O modules for operation in the field, IP67 - K60
number of digital inputs0
type of switching outputPNP transistor
design of the device typestandard slave
number of digital outputs4
type of voltage of output voltagesDC
property of the output short-circuit proofYes
design of the pin assignment of the outputsY-II assignement
ampacity of the semiconductor output at DC-13 at 24 V2 A
type of electrical connection of the inputs and outputsM12 screw-type terminals
