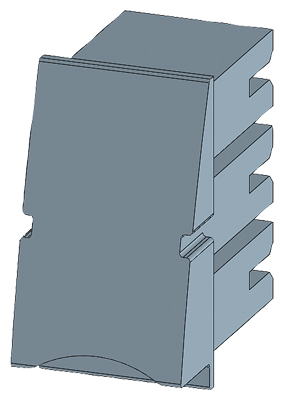

Name: Extension connector between 2 extension blocks
Brand: Siemens
SKU: 3RA6890-1AB
Availability: InStock

Specifications

Dimensions

Width23 mm

Height42 mm

Depth33 mm

Other

fastening methodplug-in fixing

shock resistanceSemi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes

product brand nameSIRIUS

degree of pollution3

product designationexpansion plug for 3RA19

vibration resistancef = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles

operational current at AC at 400 V rated value63

installation altitude at height above sea level maximum2 000

Downloads

3RA6890-1AB_doc_0 3RA6890-1AB_doc_1 3RA6890-1AB_doc_2
