Active

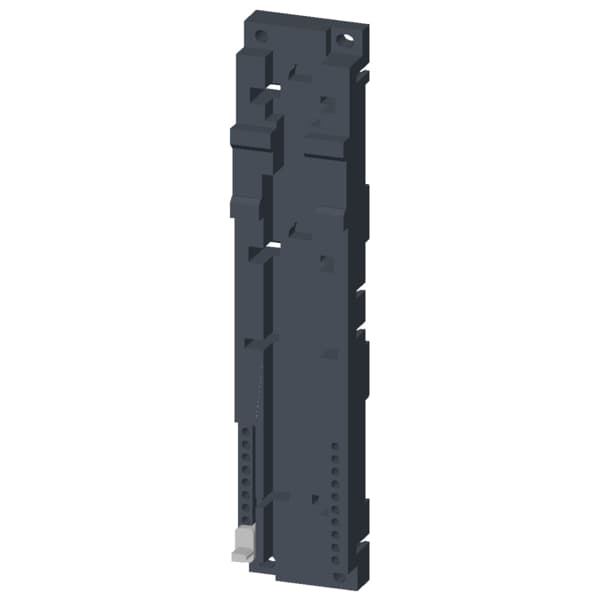

Mounting rail adapter
Part Number: 3RA2922-1B
Brand
Category
DIN-rail adapter
Siemens 3RA2922-1B. Mounting rail adapter, short Size S00, S0 For mechanical fixing of CB and contactor Can be snapped onto DIN rail or for screw mounting (multi-unit packaging).
Specifications
Mechanical
Net Weight0.088 kg

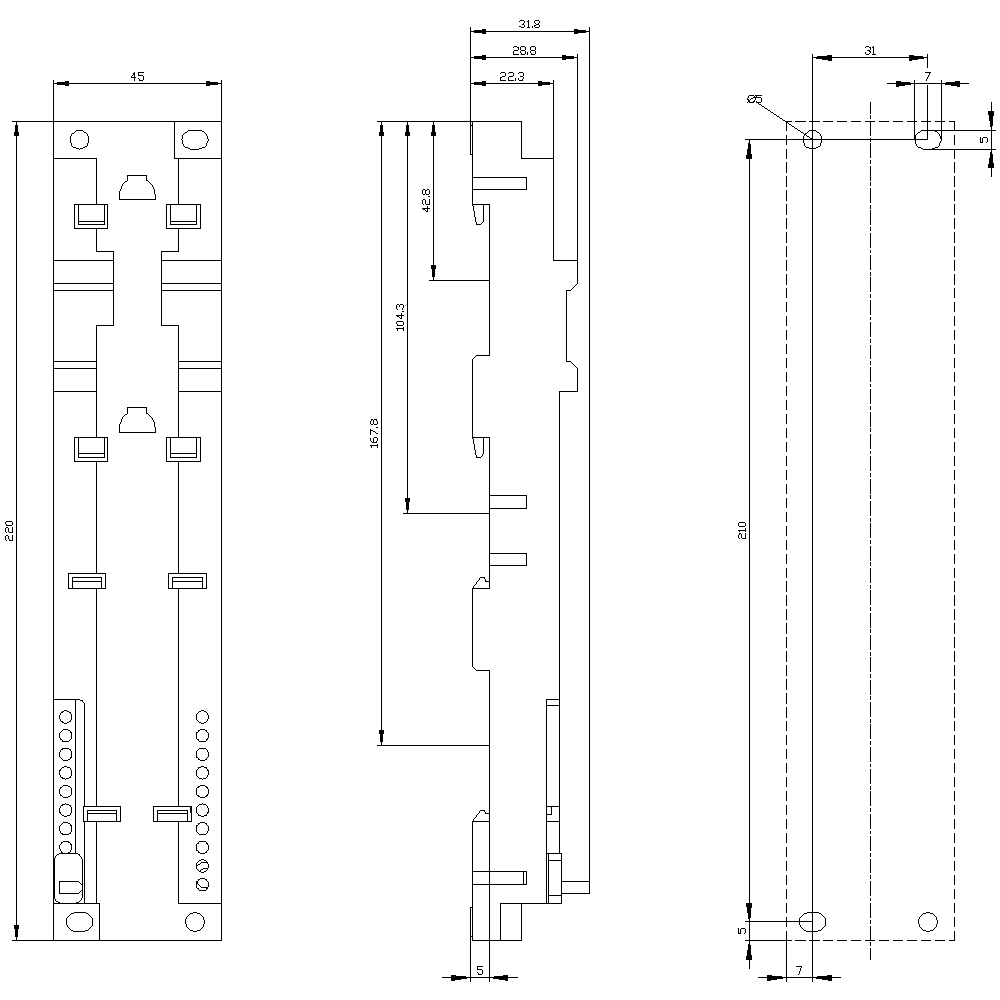

Dimensions
Width45 mm
Height220 mm
Depth28.8 mm
Other
materialplastic
fastening methodscrew and snap-on mounting onto 35 mm DIN rail
product categoryDIN-rail adapter
size of contactorS00, S0
product brand nameSIRIUS
product designationDIN rail adapter
product type designation3RA29
certificate of suitabilityCE / UL / CSA
size of the circuit-breakerS00, S0
Substance Prohibitance (Date)07/01/2006
