function module star-delta (wye-delta)
Part Number: 3RA2816-0EW20
Brand
Category
Timer block

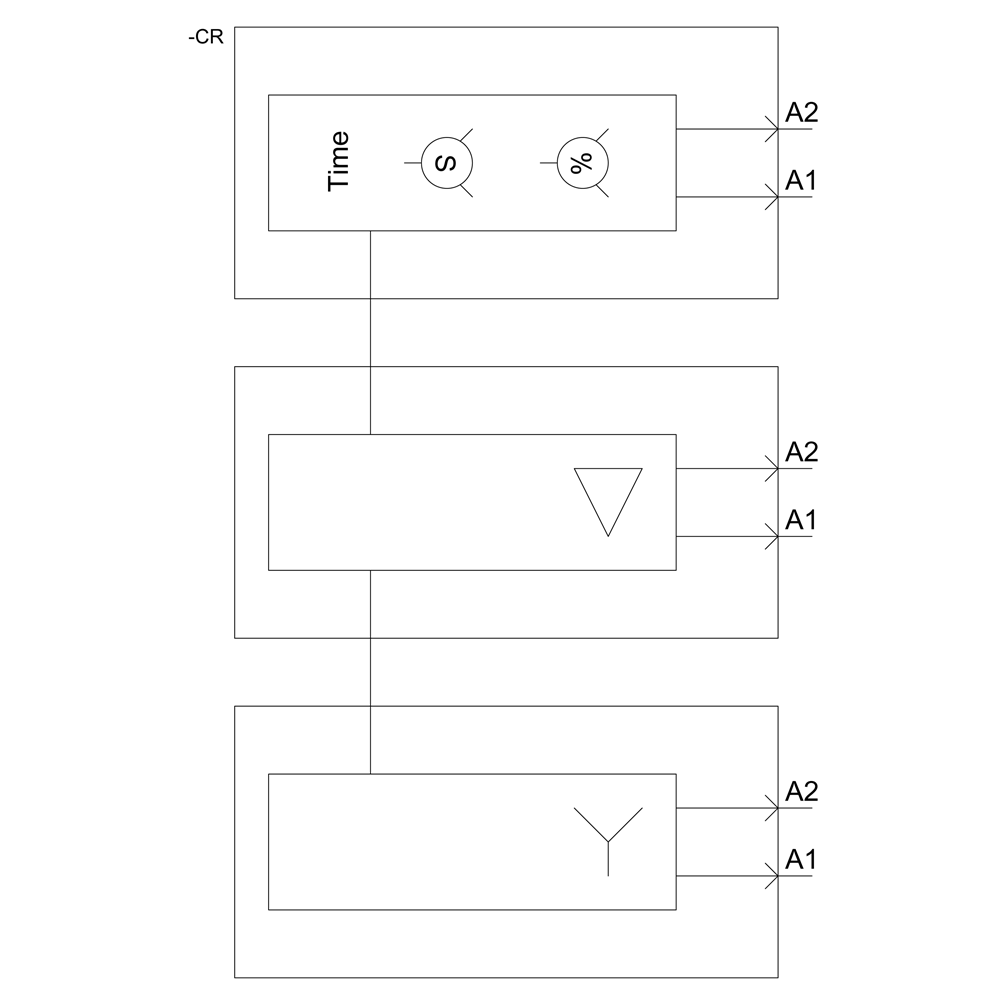

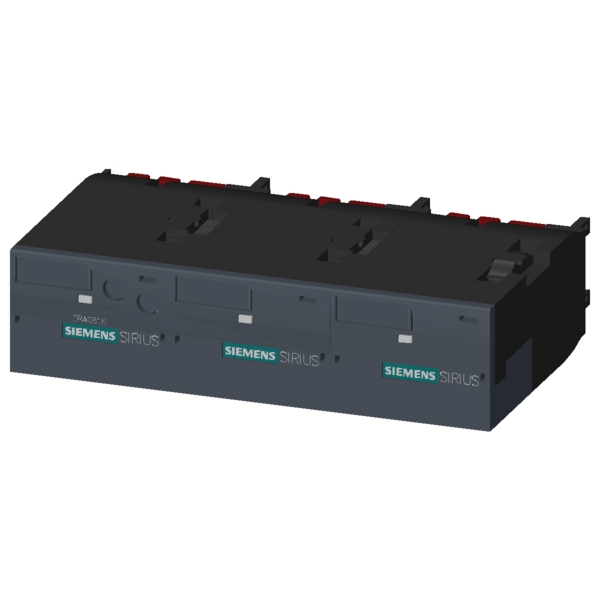

Siemens 3RA2816-0EW20. function module star-delta (wye-delta), consisting of lateral basic module and two coupling modules, time range 0.05-60 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, for contactors 3RT20.
Specifications
Mechanical
Net Weight0.216 kg
Dimensions
Width45 mm
Height38 mm
Depth74 mm
Other
— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
recovery time150 ms
adjustable time0.5 ... 60 s
type of voltageAC/DC
active principleelectronic
fastening methodclip-on
mounting positionany (like contactor)
product brand nameSIRIUS
type of insulationBasic insulation
degree of pollution3
product designationfunction module
design of the productcomprising basic module and two coupling modules
power supply influence±2 %
product type designation3RA28
relative repeat accuracy1 %
Substance Prohibitance (Date)10/01/2009
category according to EN 954-1none
control supply voltage 1 at DC24 ... 240 V
design of the surge suppressorwith varistor
material of switching contactsAgSnO2
test voltage for isolation test1.5 kV
control supply voltage frequency 150 ... 60 Hz
product function star-delta circuitYes
relative humidity during operation0 ... 95 %
protection class IP of the terminalIP20
test voltage for surge voltage test4 800 V
EMC immunity according to IEC 61812-1Environment A (industrial area)
surge voltage resistance rated value4 kV
product component semi-conductor outputNo
reference code according to IEC 81346-2K
influence of the surrounding temperature±1 %
product extension optional remote controlNo
product extension required remote controlNo
design of the control terminal non-floatingNo
shock resistance according to IEC 60068-2-2715g / 11 ms
type of voltage of the control supply voltageAC/DC
vibration resistance according to IEC 60068-2-610 ... 59 Hz: 0.35 mm, 60 ... 150 Hz: 2g
operating frequency with 3RT2 contactor maximum2 500 1/h
electrostatic discharge according to IEC 61000-4-28 kV
field-based interference according to IEC 61000-4-310 V/m
mechanical service life (operating cycles) typical10 000 000
size of contactor can be combined company-specificS00, S0, S2, S3
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
relative setting accuracy relating to full-scale value15 %
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
product component removable terminal for auxiliary and control circuitNo
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
