Active
rotary operating mechanism
Part Number: 3LD9343-2C
Brand
Category
Handle for power circuit breaker

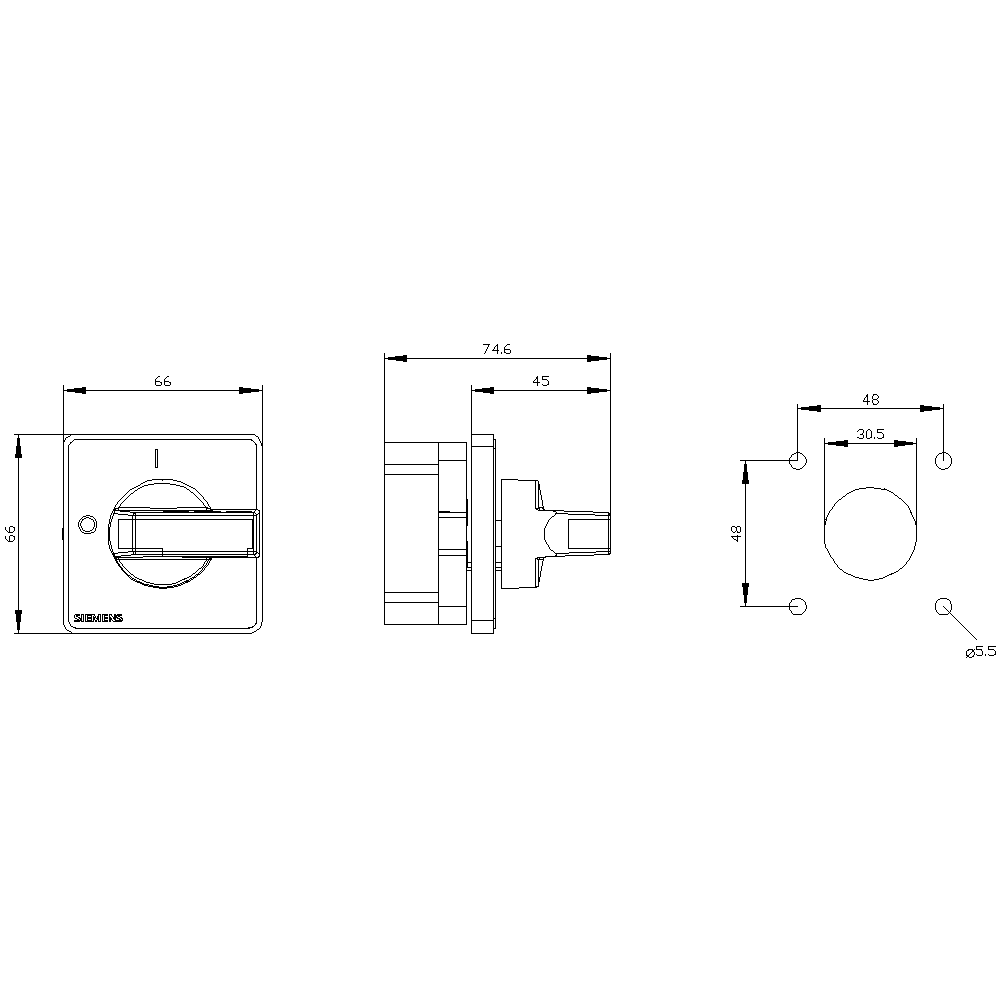

Siemens 3LD9343-2C. rotary operating mechanism, actuating lever black, defeatable, 66x66 mm, lockable in 0-position, for four-hole front mounting. Accessory for switch disconnector 3LD3.
Specifications
Mechanical
Net Weight110 g
Other
colorblack
product brand nameSENTRON
product designationRotary operators
number of bracket locks maximum3
degree of protection NEMA ratingother
hasp thickness of the bracket locks4 ... 6 mm
suitability for use circuit breakerNo
suitability for use switch disconnectorYes
suitability for use EMERGENCY OFF switchNo
product feature can be locked in ON positionNo
product feature can be locked into OFF position
