Active
rotary operating mechanism
Part Number: 3LD9284-3D
Brand
Category
Handle for power circuit breaker

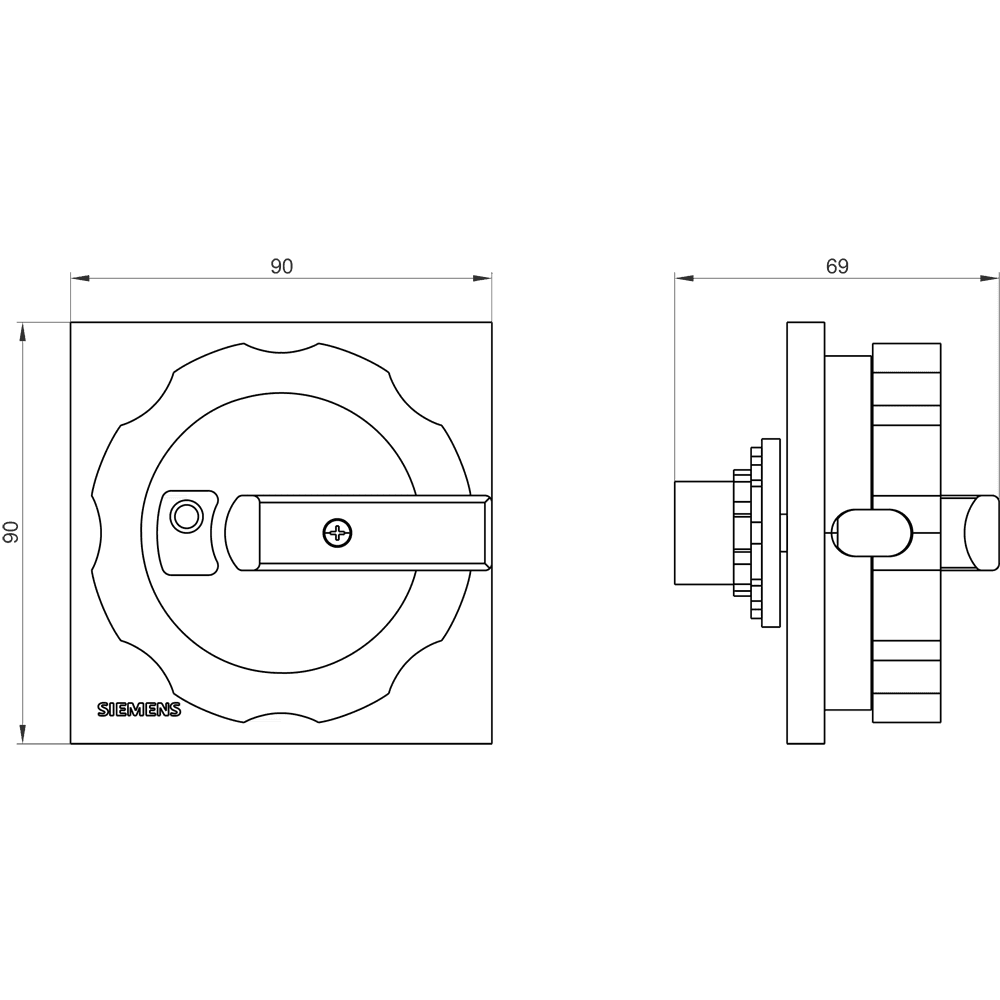

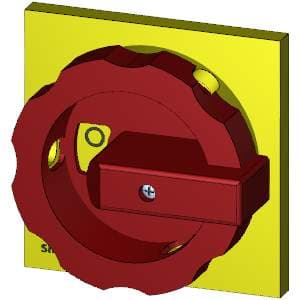

Siemens 3LD9284-3D. rotary operating mechanism, actuating lever Red / yellow, for center-hole Front mounting, for 63 A to 125 A, accessory for main and emergency switching-off switch 3LD2.
Specifications
Mechanical
Net Weight150 g
Other
colorred / yellow
product brand nameSENTRON
product designationRotary operators
design of the productaccessories for 3LD2 main and EMERGENCY-STOP switches
number of bracket locks maximum3
degree of protection NEMA rating1, 3R, 4X, 12
hasp thickness of the bracket locks4 ... 8 mm
suitability for use circuit breakerNo
suitability for use switch disconnectorYes
suitability for use EMERGENCY OFF switchYes
product feature can be locked in ON position
