Active
rotary operating mechanism
Part Number: 3LD9243-3B
Brand
Category
Handle for power circuit breaker

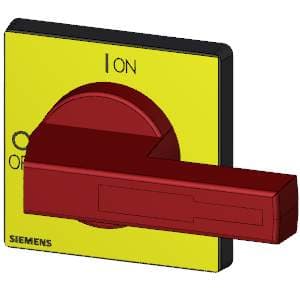

Siemens 3LD9243-3B. rotary operating mechanism, selector switch red/yellow, for four-hole front mounting, accessories for main and EMERGENCY-OFF switch 3LD23/24 for 160 A-250 A, 3P and 3P+N, for main and EMERGENCY-OFF switch 3LD5 UL for 100 A-150 A.
Specifications
Mechanical
Net Weight218 g
Other
colorred / yellow
product brand nameSENTRON
product designationRotary operators
design of the productaccessories for 3LD23/24 main and EMERGENCY-STOP switches
number of bracket locks maximum3
degree of protection NEMA rating1, 3R, 4X, 12
hasp thickness of the bracket locks5 ... 7.5 mm
suitability for use circuit breakerNo
suitability for use switch disconnectorYes
suitability for use EMERGENCY OFF switchYes
product feature can be locked in ON position
