Active
SENTRON
Part Number: 3KC0354-0RE00-0AA0
Brand
Category
Switch disconnector

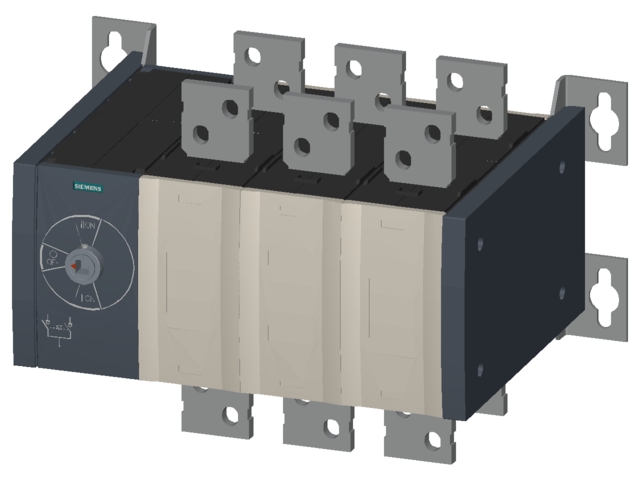

Siemens 3KC0354-0RE00-0AA0. SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 5, 3-pole, Iu: 1600 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 800 A, Ie at AC-23 A at 690 V: 800 A, Screw mounting, front operating mechanism, at the left end, without handle, busbar connection.
Specifications
Mechanical
Net Weight46.5 kg
Dimensions
Width475 mm
Height310 mm
Depth311.5 mm
Other
type of devicefixed mounting
number of poles3
design of handlewithout
fastening methodscrew fixing
product brand nameSENTRON
degree of pollution3
product designationtransfer switching equipment
protection class IPIP00
overvoltage categoryIV
design of the productmanually operated
product feature interlockNo
size of switch disconnector5
type of the driving mechanismFront operating mechanism
design of the actuating elementWithout handle
operational current rated value1 600 A
suitability for use main switchYes
suitability for use safety switchYes
product extension auxiliary switchYes
product extension optional motor driveNo
suitability for use switch disconnectorYes
suitability for use EMERGENCY OFF switchYes
type of the driving mechanism motor driveNo
position of the switch operating mechanismat the left end
product extension optional voltage triggerNo
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts16
number of NO contacts for auxiliary contacts16
suitability for use maintenance/repair switchYes
number of connected CO contacts for auxiliary contacts0
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
mechanical service life (operating cycles) for function sequence O-I-O typical6 000
type of connectable conductor cross-sections for aluminum conductor stranded with lug1x (120 ... 300 mm²), 2x (95 ... 300 mm²)
display version for switch position indicator door-coupling rotary operating mechanismI ON- O OFF- II ON
